Product overview
Kenglobal reinforced concrete U-Drains are supplied without a dry weather flow (DWF) channel or with a formed DWF channel at the base for low-flow conditions. They are manufactured in standard and super-size ranges, with a standard length of 1 metre per unit.
Kenglobal supplies reinforced precast concrete U-drains for roadside drainage, industrial developments, residential works and civil infrastructure in Johor and across Malaysia. Choose units with or without a dry weather flow channel according to your project drawings.
The Malaysia catalogue covers sizes from 300 mm up to 3,600 mm. Final dimensions, concrete grade, reinforcement and loading requirements are subject to approved drawings and technical review.
For supply to Johor or other Malaysia project locations, email Sales@kenglobalgroup.com with drawings, quantities, site location and required delivery date. Production lead time, site access, unloading and delivery arrangements will be confirmed in the quotation.
Handling & installation
Stack units on level, stable ground to prevent cracking of the base slab.
Lay units on level, compacted bedding to provide uniform support.
Use free-draining selected granular material and compact in thin layers with light equipment.
Use a spreader beam, steel pins and lifting cables arranged for the unit size.

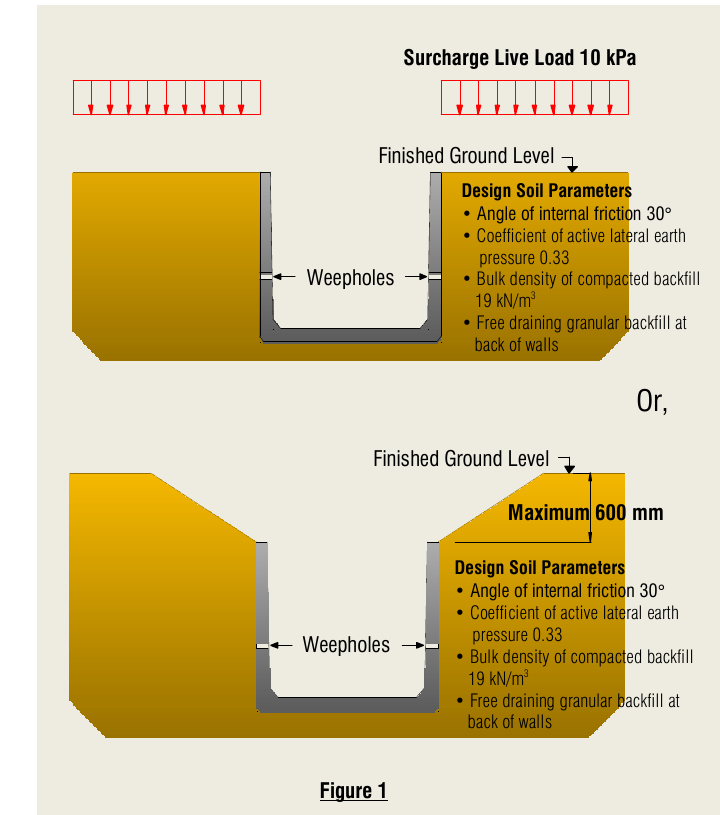

Malaysia technical data
Tables are organised from the supplied Malaysia catalogue. All dimensions are in millimetres unless stated otherwise; weights are indicative.


Swipe to view all columns

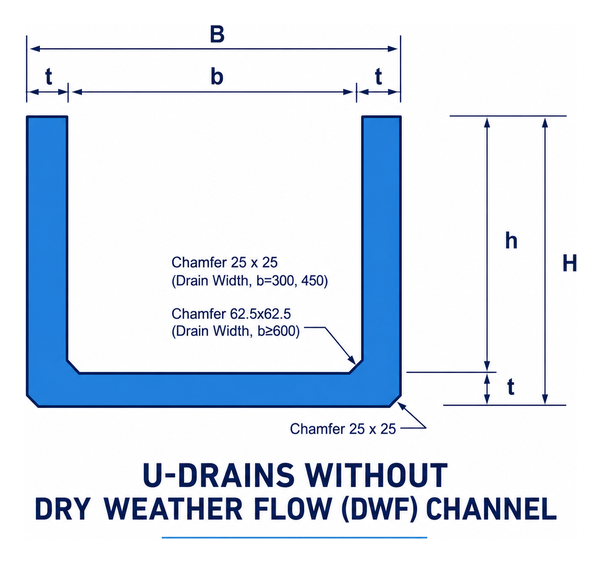

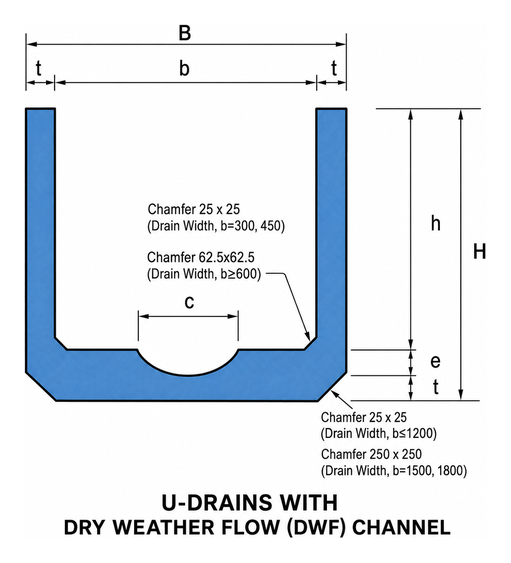

| Nominal Size(mm) | b(mm) | h(mm) | t / tb(mm) | B(mm) | WITHOUT DWF | WITH DWF | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| H(mm) | Approx Product Weight(ton) | H(mm) | c(mm) | e(mm) | Approx Product Weight(ton) | |||||
| 300 x 300 | 300 | 300 | 65 | 430 | 365 | 0.16 | 435 | 140 | 70 | 0.22 |
| 450 x 300 | 450 | 300 | 65 | 580 | 365 | 0.19 | 435 | 450 | 80 | 0.24 |
| 450 x 450 | 450 | 450 | 65 | 580 | 515 | 0.24 | 595 | 450 | 80 | 0.29 |
| 600 x 300 | 600 | 300 | 65 | 730 | 365 | 0.22 | 495 | 450 | 80 | 0.30 |
| 600 x 450 | 600 | 450 | 65 | 730 | 515 | 0.26 | 595 | 450 | 80 | 0.34 |
| 600 x 600 | 600 | 600 | 65 | 730 | 665 | 0.33 | 745 | 450 | 80 | 0.39 |
| 750 x 450 | 750 | 450 | 65 | 880 | 515 | 0.29 | 595 | 450 | 80 | 0.41 |
| 750 x 600 | 750 | 600 | 65 | 880 | 665 | 0.34 | 745 | 450 | 80 | 0.45 |
| 750 x 750 | 750 | 750 | 65 | 880 | 815 | 0.39 | 895 | 450 | 80 | 0.50 |
| 900 x 450 | 900 | 450 | 80 | 1060 | 530 | 0.39 | 610 | 450 | 80 | 0.53 |
| 900 x 600 | 900 | 600 | 80 | 1060 | 680 | 0.44 | 760 | 450 | 80 | 0.59 |
| 900 x 750 | 900 | 750 | 80 | 1060 | 830 | 0.50 | 910 | 450 | 80 | 0.64 |
| 900 x 900 | 900 | 900 | 80 | 1060 | 980 | 0.56 | 1060 | 450 | 80 | 0.70 |
| 1200 x 600 | 1200 | 600 | 80/90 | 1360 | 680 | 0.50 | 915 | 1070 | 225 | 0.89 |
| 1200 x 750 | 1200 | 750 | 80/90 | 1360 | 830 | 0.56 | 1065 | 1070 | 225 | 0.95 |
| 1200 x 900 | 1200 | 900 | 80/90 | 1360 | 980 | 0.62 | 1215 | 1070 | 225 | 1.00 |
| 1200 x 1050 | 1200 | 1050 | 80/90 | 1360 | 1130 | 0.68 | 1365 | 1070 | 225 | 1.06 |
| 1200 x 1200 | 1200 | 1200 | 80/90 | 1360 | 1280 | 0.74 | 1515 | 1070 | 225 | 1.12 |
| 1500 x 750 | 1500 | 750 | 100 | 1700 | 850 | 0.79 | 1075 | 1070 | 225 | 1.17 |
| 1500 x 900 | 1500 | 900 | 100 | 1700 | 1000 | 0.87 | 1225 | 1070 | 225 | 1.24 |
| 1500 x 1050 | 1500 | 1050 | 100 | 1700 | 1150 | 0.94 | 1375 | 1070 | 225 | 1.32 |
| 1500 x 1200 | 1500 | 1200 | 100 | 1700 | 1300 | 1.01 | 1525 | 1070 | 225 | 1.39 |
| 1500 x 1350 | 1500 | 1350 | 100 | 1700 | 1450 | 1.09 | 1675 | 1070 | 225 | 1.46 |
| 1500 x 1500 | 1500 | 1500 | 100 | 1700 | 1600 | 1.16 | 1825 | 1070 | 225 | 1.54 |
| 1800 x 900 | 1800 | 900 | 115 | 2030 | 1050 | 1.09 | 1240 | 1070 | 225 | 1.65 |
| 1800 x 1050 | 1800 | 1050 | 115 | 2030 | 1165 | 1.17 | 1390 | 1070 | 225 | 1.73 |
| 1800 x 1200 | 1800 | 1200 | 115 | 2030 | 1315 | 1.26 | 1540 | 1070 | 225 | 1.82 |
| 1800 x 1350 | 1800 | 1350 | 115 | 2030 | 1465 | 1.34 | 1690 | 1070 | 225 | 1.90 |
| 1800 x 1500 | 1800 | 1500 | 115 | 2030 | 1615 | 1.43 | 1840 | 1070 | 225 | 1.99 |
| 1800 x 1650 | 1800 | 1650 | 115 | 2030 | 1765 | 1.51 | 1990 | 1070 | 225 | 2.07 |
| 1800 x 1800 | 1800 | 1800 | 115 | 2030 | 1915 | 1.60 | 2140 | 1070 | 225 | 2.16 |


Swipe to view all columns

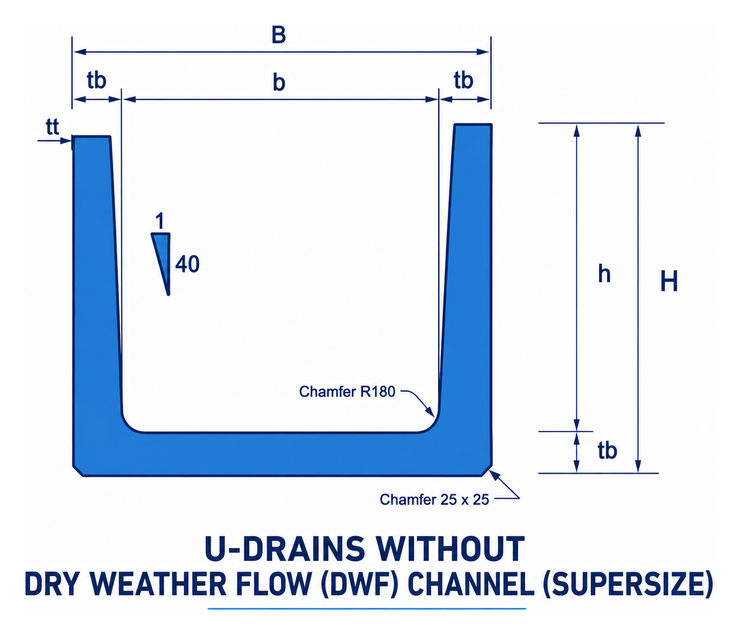

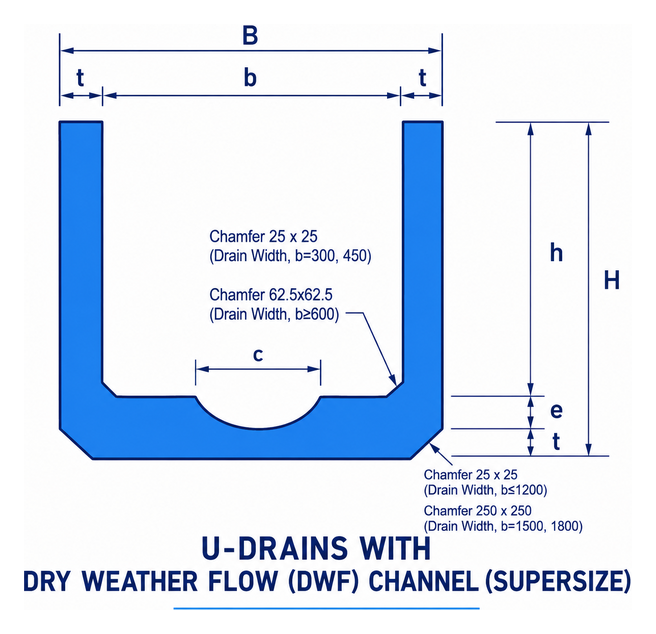

| Nominal Size(mm) | b(mm) | h(mm) | tb(mm) | tt(mm) | B(mm) | WITHOUT DWF | WITH DWF | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H(mm) | Approx Product Weight(ton) | H(mm) | c(mm) | e(mm) | Approx Product Weight(ton) | ||||||
| 2100 x 1050 | 2135 | 1050 | 150 | 128 | 2435 | 1200 | 1.65 | 1425 | 1070 | 225 | 2.40 |
| 2100 x 1200 | 2135 | 1200 | 150 | 125 | 2435 | 1350 | 1.75 | 1575 | 1070 | 225 | 2.50 |
| 2100 x 1350 | 2135 | 1350 | 150 | 121 | 2435 | 1500 | 1.84 | 1725 | 1070 | 225 | 2.59 |
| 2100 x 1500 | 2135 | 1500 | 150 | 117 | 2435 | 1650 | 1.92 | 1875 | 1070 | 225 | 2.68 |
| 2100 x 1650 | 2135 | 1650 | 150 | 113 | 2435 | 1800 | 2.01 | 2025 | 1070 | 225 | 2.76 |
| 2100 x 1800 | 2135 | 1800 | 150 | 110 | 2435 | 1950 | 2.09 | 2175 | 1070 | 225 | 2.84 |
| 2100 x 1950 | 2135 | 1950 | 150 | 106 | 2435 | 2100 | 2.17 | 2325 | 1070 | 225 | 2.92 |
| 2100 x 2100 | 2135 | 2100 | 150 | 102 | 2435 | 2250 | 2.24 | 2475 | 1070 | 225 | 3.00 |
| 2400 x 1200 | 2440 | 1200 | 150 | 125 | 2740 | 1350 | 1.86 | 1575 | 1070 | 225 | 2.78 |
| 2400 x 1350 | 2440 | 1350 | 150 | 121 | 2740 | 1500 | 1.95 | 1725 | 1070 | 225 | 2.87 |
| 2400 x 1500 | 2440 | 1500 | 150 | 117 | 2740 | 1650 | 2.04 | 1875 | 1070 | 225 | 2.95 |
| 2400 x 1650 | 2440 | 1650 | 150 | 113 | 2740 | 1800 | 2.12 | 2025 | 1070 | 225 | 3.04 |
| 2400 x 1800 | 2440 | 1800 | 150 | 110 | 2740 | 1950 | 2.20 | 2175 | 1070 | 225 | 3.12 |
| 2400 x 1950 | 2440 | 1950 | 150 | 106 | 2740 | 2100 | 2.28 | 2325 | 1070 | 225 | 3.20 |
| 2400 x 2100 | 2440 | 2100 | 150 | 102 | 2740 | 2250 | 2.36 | 2475 | 1070 | 225 | 3.28 |
| 2400 x 2250 | 2440 | 2250 | 150 | 98 | 2740 | 2400 | 2.43 | 2625 | 1070 | 225 | 3.35 |
| 2400 x 2400 | 2440 | 2400 | 150 | 95 | 2740 | 2550 | 2.50 | 2775 | 1070 | 225 | 3.42 |
| 2700 x 1350 | 2745 | 1350 | 180 | 151 | 3105 | 1530 | 2.51 | 1755 | 1070 | 225 | 3.63 |
| 2700 x 1500 | 2745 | 1500 | 180 | 147 | 3105 | 1680 | 2.62 | 1905 | 1070 | 225 | 3.74 |
| 2700 x 1650 | 2745 | 1650 | 180 | 143 | 3105 | 1830 | 2.72 | 2055 | 1070 | 225 | 3.85 |
| 2700 x 1800 | 2745 | 1800 | 180 | 140 | 3105 | 1980 | 2.83 | 2205 | 1070 | 225 | 3.95 |
| 2700 x 1950 | 2745 | 1950 | 180 | 136 | 3105 | 2130 | 2.93 | 2355 | 1070 | 225 | 4.05 |
| 2700 x 2100 | 2745 | 2100 | 180 | 132 | 3105 | 2280 | 3.03 | 2505 | 1070 | 225 | 4.15 |
| 2700 x 2250 | 2745 | 2250 | 180 | 128 | 3105 | 2430 | 3.12 | 2655 | 1070 | 225 | 4.25 |
| 2700 x 2400 | 2745 | 2400 | 180 | 125 | 3105 | 2580 | 3.22 | 2805 | 1070 | 225 | 4.34 |
| 2700 x 2550 | 2745 | 2550 | 180 | 121 | 3105 | 2730 | 3.31 | 2955 | 1070 | 225 | 4.43 |
| 2700 x 2700 | 2745 | 2700 | 180 | 117 | 3105 | 2880 | 3.39 | 3105 | 1070 | 225 | 4.52 |
| 3000 x 1500 | 3050 | 1500 | 180 | 147 | 3410 | 1680 | 2.75 | 1905 | 1070 | 225 | 4.04 |
| 3000 x 1650 | 3050 | 1650 | 180 | 143 | 3410 | 1830 | 2.86 | 2055 | 1070 | 225 | 4.15 |
| 3000 x 1800 | 3050 | 1800 | 180 | 140 | 3410 | 1980 | 2.96 | 2205 | 1070 | 225 | 4.25 |
| 3000 x 1950 | 3050 | 1950 | 180 | 136 | 3410 | 2130 | 3.06 | 2355 | 1070 | 225 | 4.35 |
| 3000 x 2100 | 3050 | 2100 | 180 | 132 | 3410 | 2280 | 3.16 | 2505 | 1070 | 225 | 4.45 |
| 3000 x 2250 | 3050 | 2250 | 180 | 128 | 3410 | 2430 | 3.26 | 2655 | 1070 | 225 | 4.55 |
| 3000 x 2400 | 3050 | 2400 | 180 | 125 | 3410 | 2580 | 3.35 | 2805 | 1070 | 225 | 4.64 |
| 3000 x 2550 | 3050 | 2550 | 180 | 121 | 3410 | 2730 | 3.44 | 2955 | 1070 | 225 | 4.73 |
| 3000 x 2700 | 3050 | 2700 | 180 | 117 | 3410 | 2880 | 3.53 | 3105 | 1070 | 225 | 4.82 |
| 3000 x 2850 | 3050 | 2850 | 180 | 113 | 3410 | 3030 | 3.61 | 3255 | 1070 | 225 | 4.90 |
| 3000 x 3000 | 3050 | 3000 | 180 | 110 | 3410 | 3180 | 3.70 | 3405 | 1070 | 225 | 4.98 |
| 3300 x 1650 | 3355 | 1650 | 180 | 143 | 3715 | 1830 | 2.99 | 2055 | 1070 | 225 | 4.45 |
| 3300 x 1800 | 3355 | 1800 | 180 | 140 | 3715 | 1980 | 3.10 | 2205 | 1070 | 225 | 4.56 |
| 3300 x 1950 | 3355 | 1950 | 180 | 136 | 3715 | 2130 | 3.20 | 2355 | 1070 | 225 | 4.66 |
| 3300 x 2100 | 3355 | 2100 | 180 | 132 | 3715 | 2280 | 3.30 | 2505 | 1070 | 225 | 4.75 |
| 3300 x 2250 | 3355 | 2250 | 180 | 128 | 3715 | 2430 | 3.39 | 2655 | 1070 | 225 | 4.85 |
| 3300 x 2400 | 3355 | 2400 | 180 | 125 | 3715 | 2580 | 3.49 | 2805 | 1070 | 225 | 4.94 |
| 3300 x 2550 | 3355 | 2550 | 180 | 121 | 3715 | 2730 | 3.58 | 2955 | 1070 | 225 | 5.03 |
| 3300 x 2700 | 3355 | 2700 | 180 | 117 | 3715 | 2880 | 3.66 | 3105 | 1070 | 225 | 5.12 |
| 3300 x 2850 | 3355 | 2850 | 180 | 113 | 3715 | 3030 | 3.75 | 3255 | 1070 | 225 | 5.21 |
| 3300 x 3000 | 3355 | 3000 | 180 | 110 | 3715 | 3180 | 3.83 | 3405 | 1070 | 225 | 5.29 |
| 3300 x 3150 | 3355 | 3150 | 180 | 106 | 3715 | 3330 | 3.91 | 3555 | 1070 | 225 | 5.37 |
| 3300 x 3300 | 3355 | 3300 | 180 | 102 | 3715 | 3480 | 3.99 | 3705 | 1070 | 225 | 5.44 |
| 3600 x 1800 | 3660 | 1800 | 180 | 140 | 4020 | 1980 | 3.23 | 2205 | 1070 | 225 | 4.86 |
| 3600 x 1950 | 3660 | 1950 | 180 | 136 | 4020 | 2130 | 3.33 | 2355 | 1070 | 225 | 4.96 |
| 3600 x 2100 | 3660 | 2100 | 180 | 132 | 4020 | 2280 | 3.43 | 2505 | 1070 | 225 | 5.06 |
| 3600 x 2250 | 3660 | 2250 | 180 | 128 | 4020 | 2430 | 3.53 | 2655 | 1070 | 225 | 5.15 |
| 3600 x 2400 | 3660 | 2400 | 180 | 125 | 4020 | 2580 | 3.62 | 2805 | 1070 | 225 | 5.25 |
| 3600 x 2550 | 3660 | 2550 | 180 | 121 | 4020 | 2730 | 3.71 | 2955 | 1070 | 225 | 5.34 |
| 3600 x 2700 | 3660 | 2700 | 180 | 117 | 4020 | 2880 | 3.80 | 3105 | 1070 | 225 | 5.42 |
| 3600 x 2850 | 3660 | 2850 | 180 | 113 | 4020 | 3030 | 3.88 | 3255 | 1070 | 225 | 5.51 |
| 3600 x 3000 | 3660 | 3000 | 180 | 110 | 4020 | 3180 | 3.96 | 3405 | 1070 | 225 | 5.59 |
| 3600 x 3150 | 3660 | 3150 | 180 | 106 | 4020 | 3330 | 4.04 | 3555 | 1070 | 225 | 5.67 |
| 3600 x 3300 | 3660 | 3300 | 180 | 102 | 4020 | 3480 | 4.12 | 3705 | 1070 | 225 | 5.75 |
| 3600 x 3450 | 3660 | 3450 | 180 | 98 | 4020 | 3630 | 4.19 | 3855 | 1070 | 225 | 5.82 |
| 3600 x 3600 | 3660 | 3600 | 180 | 95 | 4020 | 3780 | 4.26 | 4005 | 1070 | 225 | 5.89 |

Swipe to view all columns
| Item | Value |
|---|---|
| Concrete characteristic strength (28-day) | 30 N/mm2 - 40 N/mm2 |
| Concrete cover - Standard size | 25 mm |
| Concrete cover - Super size | 30 mm |
| Standard unit length | 1,000 mm |
| Jointing | Butt end joints; cement-sand mortar may be used to close gaps where necessary |
