Product overview
Box Culvert for Malaysia projects.
Precast reinforced concrete box culverts are supplied with a matching lid for reliable stormwater conveyance and culvert crossings. Small-size and standard-size units are available, with a standard unit length of 1 metre.
For stormwater conveyance and roadway crossings in Johor and Malaysia, send clear opening dimensions, unit length, loading requirements, cover conditions and structural drawings. Standard or customised supply is subject to design confirmation and production planning.
For supply to Johor or other Malaysia project locations, email Sales@kenglobalgroup.com with drawings, quantities, site location and required delivery date. Production lead time, site access, unloading and delivery arrangements will be confirmed in the quotation.
Typical applications
Malaysia technical data
Box Culvert standard sizes.
Tables are organised from the supplied Malaysia catalogue. All dimensions are in millimetres unless stated otherwise; weights are indicative.

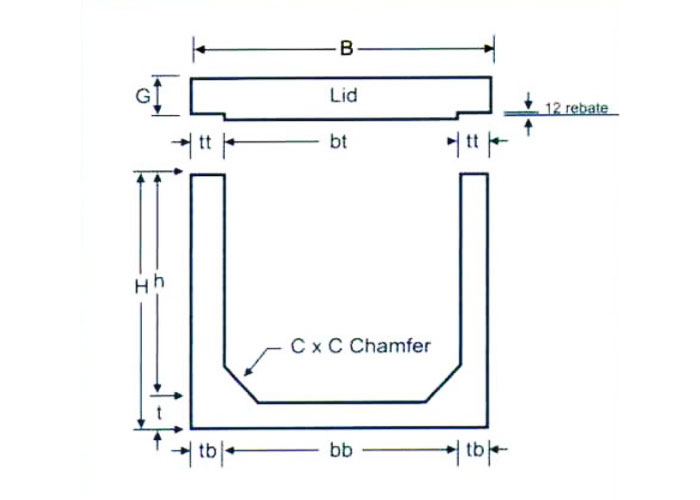

Swipe to view all columns
| Nominal size(mm x mm) | Bmm | btmm | bbmm | hmm | Hmm | Cmm | tmm | ttmm | tbmm | Gmm | Lid(t) | Invert(t) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 x 300 | 420 | 300 | 290 | 300 | 360 | 60 | 60 | 60 | 65 | 80 | 0.11 | 0.20 |
| 300 x 450 | 425 | 305 | 290 | 450 | 510 | 60 | 60 | 60 | 67 | 80 | 0.11 | 0.26 |
| 300 x 600 | 430 | 310 | 290 | 600 | 665 | 60 | 65 | 60 | 70 | 80 | 0.11 | 0.33 |
| 450 x 450 | 575 | 455 | 440 | 450 | 510 | 60 | 60 | 60 | 67 | 100 | 0.18 | 0.29 |
| 450 x 600 | 580 | 460 | 440 | 600 | 665 | 60 | 65 | 60 | 70 | 100 | 0.18 | 0.36 |

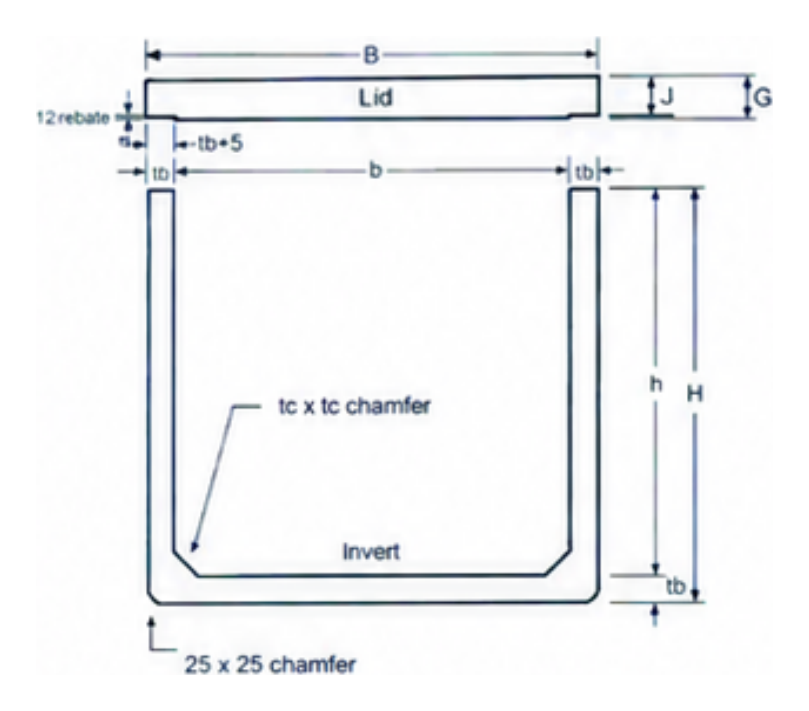

Swipe to view all columns
| bmm | hmm | Bmm | Hmm | tbmm | tcmm | Gmm | Jmm | Lid(t) | Invert(t) |
|---|---|---|---|---|---|---|---|---|---|
| 600 | 300 | 740 | 370 | 70 | 70 | 140 | 128 | 0.26 | 0.24 |
| 600 | 450 | 740 | 520 | 70 | 70 | 140 | 128 | 0.26 | 0.30 |
| 600 | 600 | 740 | 670 | 70 | 70 | 140 | 128 | 0.26 | 0.35 |
| 750 | 450 | 910 | 530 | 80 | 80 | 140 | 128 | 0.32 | 0.37 |
| 750 | 600 | 910 | 680 | 80 | 80 | 140 | 128 | 0.32 | 0.43 |
| 750 | 750 | 910 | 830 | 80 | 80 | 140 | 128 | 0.32 | 0.49 |
| 900 | 450 | 1060 | 530 | 80 | 80 | 140 | 128 | 0.37 | 0.40 |
| 900 | 600 | 1060 | 680 | 80 | 80 | 140 | 128 | 0.37 | 0.46 |
| 900 | 750 | 1060 | 830 | 80 | 80 | 140 | 128 | 0.37 | 0.52 |
| 900 | 900 | 1060 | 980 | 80 | 80 | 140 | 128 | 0.37 | 0.58 |
| 1200 | 600 | 1390 | 695 | 95 | 95 | 150 | 138 | 0.51 | 0.61 |
| 1200 | 750 | 1390 | 845 | 95 | 95 | 150 | 138 | 0.51 | 0.68 |
| 1200 | 900 | 1390 | 995 | 95 | 95 | 150 | 138 | 0.51 | 0.75 |
| 1200 | 1050 | 1390 | 1145 | 95 | 95 | 150 | 138 | 0.51 | 0.82 |
| 1200 | 1200 | 1390 | 1295 | 95 | 95 | 150 | 138 | 0.51 | 0.89 |
| 1500 | 750 | 1700 | 850 | 100 | 100 | 175 | 163 | 0.73 | 0.81 |
| 1500 | 900 | 1700 | 1000 | 100 | 100 | 175 | 163 | 0.73 | 0.88 |
| 1500 | 1050 | 1700 | 1150 | 100 | 100 | 175 | 163 | 0.73 | 0.96 |
| 1500 | 1200 | 1700 | 1300 | 100 | 100 | 175 | 163 | 0.73 | 1.03 |
| 1500 | 1350 | 1700 | 1450 | 100 | 100 | 175 | 163 | 0.73 | 1.10 |
| 1500 | 1500 | 1700 | 1600 | 100 | 100 | 175 | 163 | 0.73 | 1.18 |
| 1800 | 900 | 2030 | 1050 | 115 | 115 | 175 | 163 | 0.87 | 1.11 |
| 1800 | 1050 | 2030 | 1165 | 115 | 115 | 175 | 163 | 0.87 | 1.20 |
| 1800 | 1200 | 2030 | 1315 | 115 | 115 | 175 | 163 | 0.87 | 1.28 |
| 1800 | 1350 | 2030 | 1465 | 115 | 115 | 175 | 163 | 0.87 | 1.37 |
| 1800 | 1500 | 2030 | 1615 | 115 | 115 | 175 | 163 | 0.87 | 1.45 |
| 1800 | 1650 | 2030 | 1765 | 115 | 115 | 175 | 163 | 0.87 | 1.54 |
| 1800 | 1800 | 2030 | 1915 | 115 | 115 | 175 | 163 | 0.87 | 1.62 |
Johor & Malaysia enquiries
Get a quotation for your project.
Send your product size or drawing, quantity, delivery location and required date. If you are unsure of the product name, send the drawing for review.
Opens WhatsApp or your email app. Review and send your message there; drawings can be attached in that app.
Minta sebut harga
Hantar saiz atau lukisan produk, kuantiti, lokasi penghantaran dan tarikh diperlukan. Harga, stok, tempoh pengeluaran dan kos penghantaran akan disahkan dalam sebut harga.
Malaysia OfficeNo11, Jalan Tiram 2, Taman Perindustrian,
81800 Ulu Tiram, Johor Darul Ta'zim
Singapore / WhatsApp: Mr. Manik · +65 8424 7534
Mr. Steven Lim · +65 8737 0784
Sales@kenglobalgroup.com
Product & supply guidance
Box Culvert: questions before ordering
What is Box Culvert used for?
Precast reinforced concrete box culverts for higher-capacity drainage and small culvert crossings. Typical applications include high-capacity stormwater drainage, road and access crossings, infrastructure culvert works. Confirm the required specification against your project drawings.
Which box culvert dimensions should I use?
Use the drawing and table for the required small-size or standard-size box culvert. Read each dimension against its matching drawing symbol: internal opening dimensions are not interchangeable with overall dimensions. Confirm the project specification and loading requirements before ordering.
Where can I find Box Culvert sizes and drawings?
The specification section above contains the available Malaysia catalogue product data. Read dimensions together with the relevant image or drawing and the table notes. Where a value is not listed, request confirmation from Kenglobal rather than assuming it from another product.
What information should I send for a quotation?
Send the product type, dimensions or drawing reference, quantity, project location and required delivery date. Include reinforcement and loading requirements where specified. Kenglobal can then review the requirements and confirm the quotation, availability and delivery arrangements.
