Concrete Pipe Culvert Supplier in Johor, Malaysia

Compare Class X and Type S concrete pipe culverts in Johor, Malaysia: 300–1500 mm nominal diameter, 1520 mm length. View weights and request a quote.

Product overview

Spun Pipe / Concrete Pipe Culvert for Malaysia projects.

Kenglobal supplies precast concrete pipe culverts in rebated-joint Class X and non-jointed Type S configurations. Standard units are 1,520 mm long and are available from 300 mm to 1,500 mm nominal diameter.

For supply to Johor or other Malaysia project locations, email Sales@kenglobalgroup.com with drawings, quantities, site location and required delivery date. Production lead time, site access, unloading and delivery arrangements will be confirmed in the quotation.

Typical applications

Road and rail crossings
Stormwater conveyance
Waterway and drainage infrastructure

Malaysia technical data

Spun Pipe / Concrete Pipe Culvert standard sizes.

Tables are organised from the supplied Malaysia catalogue. All dimensions are in millimetres unless stated otherwise; weights are indicative.

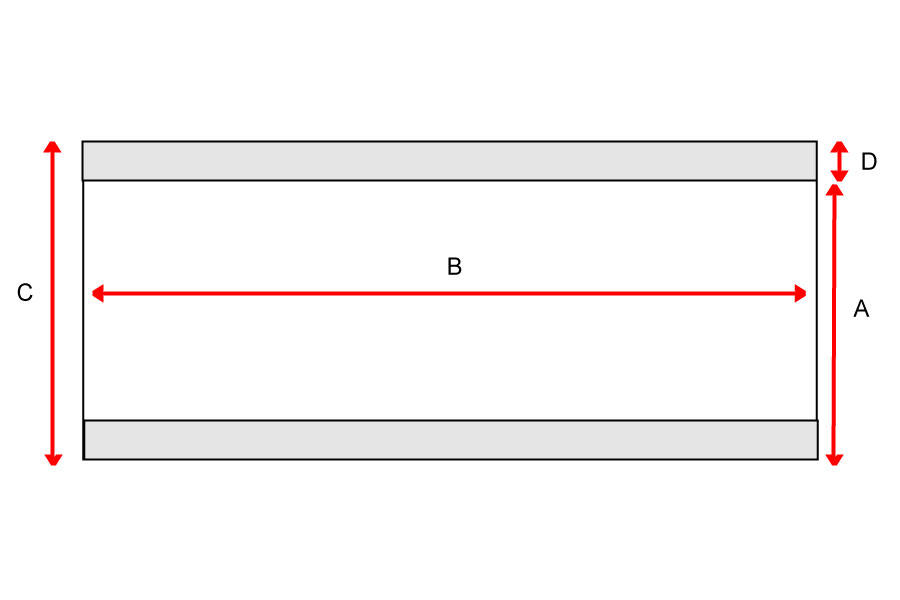

Spun Pipe / Concrete Pipe Culvert - Rebated joint Class X concrete pipe culvert drawing
Rebated joint Class X concrete pipe culvert drawing
Product specificationsRebated joint - Class X

Swipe to view all columns

Nominal dia. (in)Nominal dia. (mm)Length BACDApprox. wt (mt)
1 ft x 5 ft3001520340360200.11
1.25 ft x 5 ft3751520375445350.15
1.5 ft x 5 ft4501520450530400.24
2 ft x 5 ft6001520600700500.40
2.5 ft x 5 ft7501520750860550.55
3 ft x 5 ft90015209001030650.78
4 ft x 5 ft1200152012001370851.35
5 ft x 5 ft15001520150017101052.08
* All dimensions are in millimetres unless stated otherwise.Confirm availability
Spun Pipe / Concrete Pipe Culvert - Type S concrete pipe culvert drawing
Type S concrete pipe culvert drawing
Product specificationsWithout joint - Type S

Swipe to view all columns

Nominal dia. (in)Nominal dia. (mm)Length BACDApprox. wt (mt)
1 ft x 5 ft3001520300370350.13
1.25 ft x 5 ft3751520375445350.16
1.5 ft x 5 ft4501520450530400.23
2 ft x 5 ft6001520600700500.33
2.5 ft x 5 ft7501520750860550.43
3 ft x 5 ft90015209001020600.57
4 ft x 5 ft1200152012001350751.00
5 ft x 5 ft1500152015001670851.35
* All dimensions are in millimetres unless stated otherwise.Confirm availability
Product specificationsConstituent materials

Swipe to view all columns

MaterialStandard
CementMS 522 Ordinary Portland Cement
Steel reinforcementBS 449 / MS 146
AggregatesBS 882 / MS 29 Mining Sand / 20 mm Aggregates
AdmixtureBS 5075 / MS 922 Super Plasticizer
Cold drawn wireBS 4482 / MS 144 Lateral Reinforcement Stirrup
Mild steel plateBS EN 10137-1 End Plate (Grade 43A)
* All dimensions are in millimetres unless stated otherwise.Confirm availability
Full reference documentKenglobal Precast Drainage Catalogue
Request catalogue

Johor & Malaysia enquiries

Get a quotation for your project.

Send your product size or drawing, quantity, delivery location and required date. If you are unsure of the product name, send the drawing for review.

Opens WhatsApp or your email app. Review and send your message there; drawings can be attached in that app.

Minta sebut harga

Hantar saiz atau lukisan produk, kuantiti, lokasi penghantaran dan tarikh diperlukan. Harga, stok, tempoh pengeluaran dan kos penghantaran akan disahkan dalam sebut harga.

Malaysia Office
No11, Jalan Tiram 2, Taman Perindustrian,
81800 Ulu Tiram, Johor Darul Ta'zim

Singapore / WhatsApp: Mr. Manik · +65 8424 7534
Mr. Steven Lim · +65 8737 0784
Sales@kenglobalgroup.com

Product & supply guidance

Spun Pipe / Concrete Pipe Culvert: questions before ordering

What is Spun Pipe / Concrete Pipe Culvert used for?

Precast concrete pipe culverts for road, rail, waterway and stormwater conveyance applications. Typical applications include road and rail crossings, stormwater conveyance, waterway and drainage infrastructure. Confirm the required specification against your project drawings.

Where can I find Spun Pipe / Concrete Pipe Culvert sizes and drawings?

The specification section above contains the available Malaysia catalogue product data. Read dimensions together with the relevant image or drawing and the table notes. Where a value is not listed, request confirmation from Kenglobal rather than assuming it from another product.

What information should I send for a quotation?

Send the product type, dimensions or drawing reference, quantity, project location and required delivery date. Include reinforcement and loading requirements where specified. Kenglobal can then review the requirements and confirm the quotation, availability and delivery arrangements.
