Roadside drainage · MalaysiaPrecast JKR V & U Shape Drain Malaysia
Ordinary and JKR-profile precast block drains for roadside and monsoon drainage.
Product overview
V and U Shape Drain (Block Drain) for Malaysia projects.
The Malaysia range includes Ordinary V, JKR V and JKR U precast concrete block drains. Standard profiles support roadside, municipal and monsoon drainage requirements.
Typical applications
Malaysia technical data
V and U Shape Drain (Block Drain) standard sizes.
Tables are organised from the supplied Malaysia catalogue. All dimensions are in millimetres unless stated otherwise; weights are indicative.
Swipe to view all columns

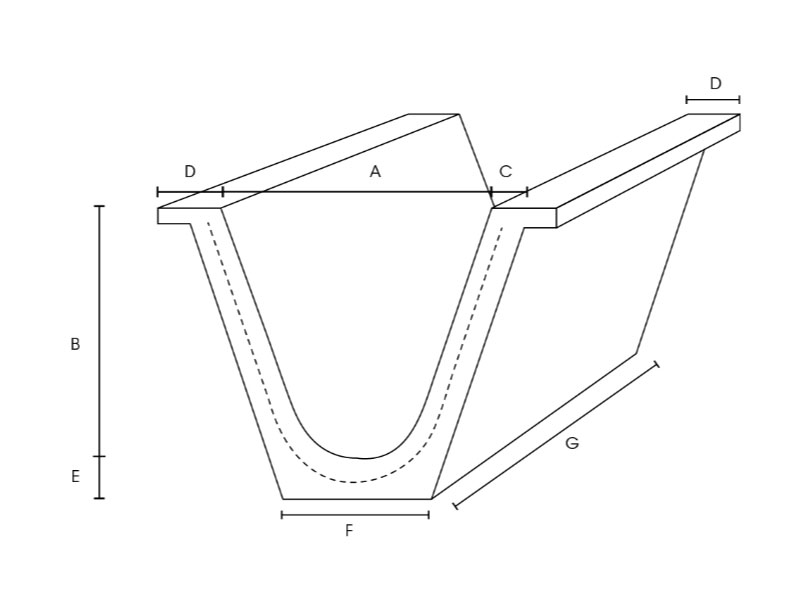

| Size | A | B | C | D | E | F | G | kg |
|---|---|---|---|---|---|---|---|---|
| 12 in (300 x 600) | 300 | 300 | 25 | 37.5 | 50 | 175 | 600 | 50 |
| 15 in (375 x 600) | 375 | 375 | 25 | 37.5 | 50 | 175 | 600 | 65 |
| 18 in (450 x 600) | 450 | 450 | 25 | 37.5 | 75 | 225 | 600 | 85 |
| 24 in (600 x 600) | 600 | 600 | 55 | 87.5 | 75 | 225 | 600 | 135 |
Swipe to view all columns

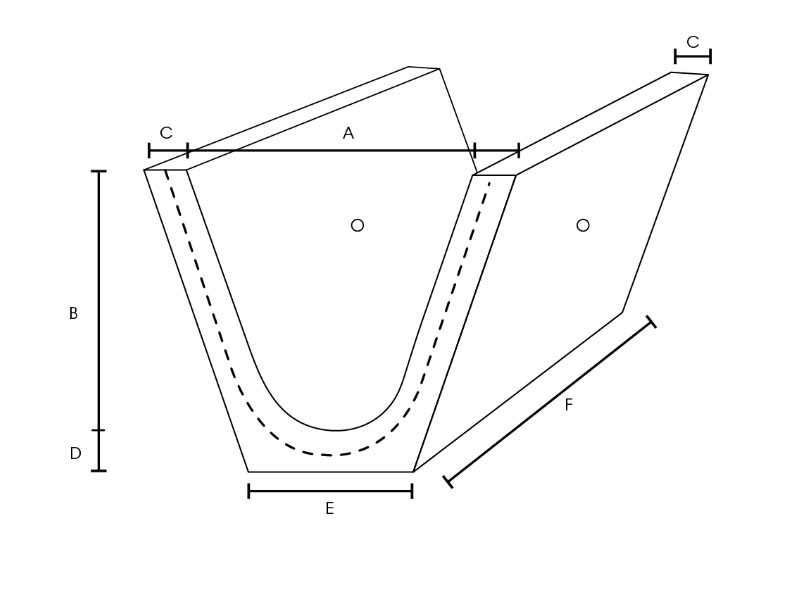

| Size | A | B | C | D | E | F | kg |
|---|---|---|---|---|---|---|---|
| 12 in (300 x 600) | 300 | 300 | 65 | 75 | 180 | 600 | 76 |
| 15 in (375 x 600) | 375 | 375 | 75 | 90 | 240 | 600 | 110 |
| 18 in (450 x 600) | 450 | 450 | 75 | 90 | 300 | 600 | 125 |
| 24 in (600 x 600) | 600 | 600 | 75 | 100 | 355 | 600 | 180 |
Swipe to view all columns

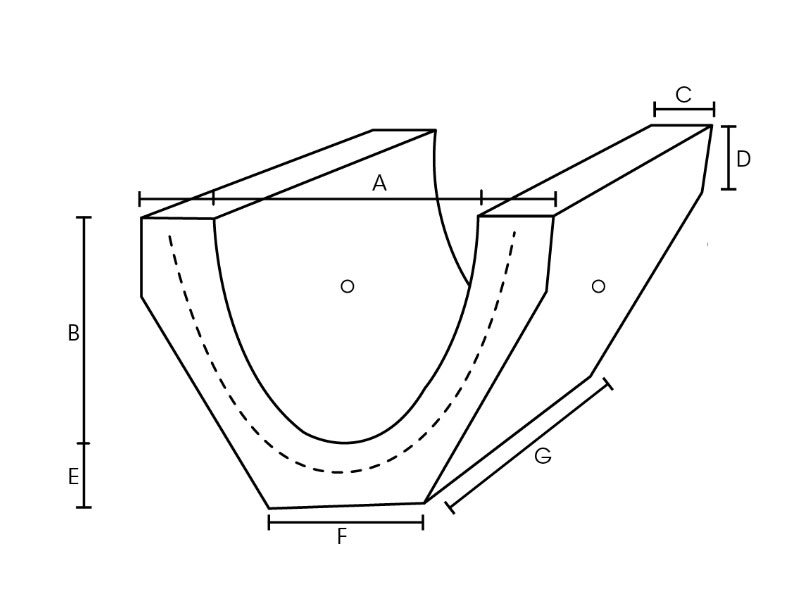

| Size | A | B | C | D | E | F | G | kg |
|---|---|---|---|---|---|---|---|---|
| 15 in (375 x 600) | 375 | 375 | 75 | 100 | 75 | 250 | 600 | 80 |
| 18 in (450 x 600) | 450 | 450 | 75 | 100 | 75 | 280 | 600 | 110 |
| 24 in (600 x 600) | 600 | 600 | 100 | 125 | 100 | 362.5 | 600 | 170 |
Product & supply guidance
V and U Shape Drain (Block Drain): questions before ordering
What is V and U Shape Drain (Block Drain) used for?
Ordinary and JKR-profile precast block drains for roadside and monsoon drainage. Typical applications include roadside monsoon drains, jKR drainage works, municipal and infrastructure projects. Confirm the required specification against your project drawings.
Where can I find V and U Shape Drain (Block Drain) sizes and drawings?
The specification section above contains the available Malaysia catalogue product data. Read dimensions together with the relevant image or drawing and the table notes. Where a value is not listed, request confirmation from Kenglobal rather than assuming it from another product.
What information should I send for a quotation?
Send the product type, dimensions or drawing reference, quantity, project location and required delivery date. Include reinforcement and loading requirements where specified. Kenglobal can then review the requirements and confirm the quotation, availability and delivery arrangements.
