Precast Concrete L-Shape Wall Supplier in Johor

Precast L-Shape retaining walls for Johor and Malaysia projects. View height, base dimensions and weight; submit site requirements for quotation.

Product overview

L Shape Wall for Malaysia projects.

Factory-manufactured L Shape Wall units provide a practical retaining solution with consistent dimensions, controlled concrete quality and efficient site installation.

For supply to Johor or other Malaysia project locations, email Sales@kenglobalgroup.com with drawings, quantities, site location and required delivery date. Production lead time, site access, unloading and delivery arrangements will be confirmed in the quotation.

Typical applications

Site levelling
Slope protection
Boundary and retaining walls

Design criteria

Minimum concrete grade: 35 N/mm2

Soil backfill bulk density: 17.30 kN/m3

Maximum surcharge: 610 mm with 30 degree slope

Internal friction angle of soil backfill: 30 degrees

Product advantages

Easy to install and dismantle

Reliable factory quality control

Maintenance-free precast solution

Direct off-loading from transport

Simple site assembly

Malaysia technical data

L Shape Wall standard sizes.

Tables are organised from the supplied Malaysia catalogue. All dimensions are in millimetres unless stated otherwise; weights are indicative.

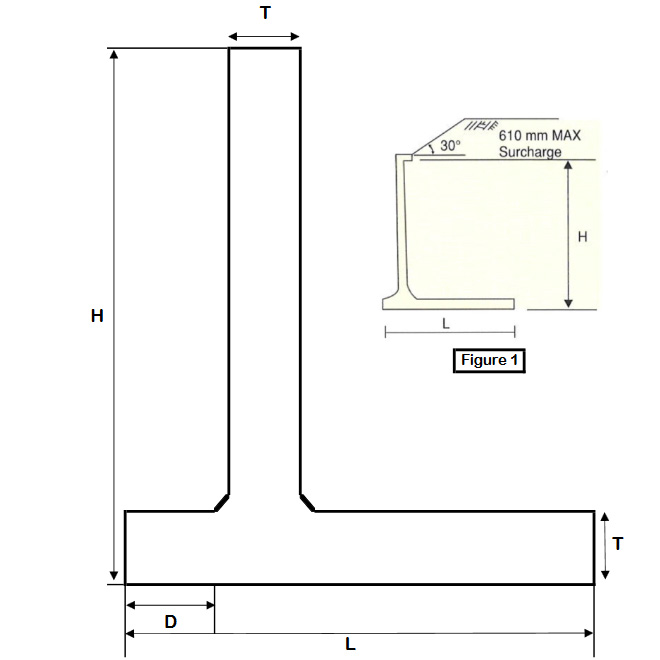

L Shape Wall - L Shape Wall technical drawing
L Shape Wall technical drawing
Product specificationsStandard L Shape Wall sizes

Swipe to view all columns

HLDTWeight (+/- tonne)
120011001501000.55
180015502501501.10
195021003001501.30
320024504502002.70
Standard unit length: 1,000 mm. Precast DWF units are also available.Confirm availability
Full reference documentKenglobal Precast Drainage Catalogue
Request catalogue

Johor & Malaysia enquiries

Get a quotation for your project.

Send your product size or drawing, quantity, delivery location and required date. If you are unsure of the product name, send the drawing for review.

Opens WhatsApp or your email app. Review and send your message there; drawings can be attached in that app.

Minta sebut harga

Hantar saiz atau lukisan produk, kuantiti, lokasi penghantaran dan tarikh diperlukan. Harga, stok, tempoh pengeluaran dan kos penghantaran akan disahkan dalam sebut harga.

Malaysia Office
No11, Jalan Tiram 2, Taman Perindustrian,
81800 Ulu Tiram, Johor Darul Ta'zim

Singapore / WhatsApp: Mr. Manik · +65 8424 7534
Mr. Steven Lim · +65 8737 0784
Sales@kenglobalgroup.com

Product & supply guidance

L Shape Wall: questions before ordering

What is L Shape Wall used for?

Precast retaining wall units for site levelling, slope protection and boundary applications. Typical applications include site levelling, slope protection, boundary and retaining walls. Confirm the required specification against your project drawings.

Where can I find L Shape Wall sizes and drawings?

The specification section above contains the available Malaysia catalogue product data. Read dimensions together with the relevant image or drawing and the table notes. Where a value is not listed, request confirmation from Kenglobal rather than assuming it from another product.

What information should I send for a quotation?

Send the product type, dimensions or drawing reference, quantity, project location and required delivery date. Include reinforcement and loading requirements where specified. Kenglobal can then review the requirements and confirm the quotation, availability and delivery arrangements.
